Integration Scenario Demo

This page explains how to implement the Embedded Checkout integration. This method enables you to rapidly implement an integrated checkout experience by leveraging Subotiz's product, pricing, and payment capabilities.

If you only need to integrate payment processing functionality, please refer to the Embedded Payment.

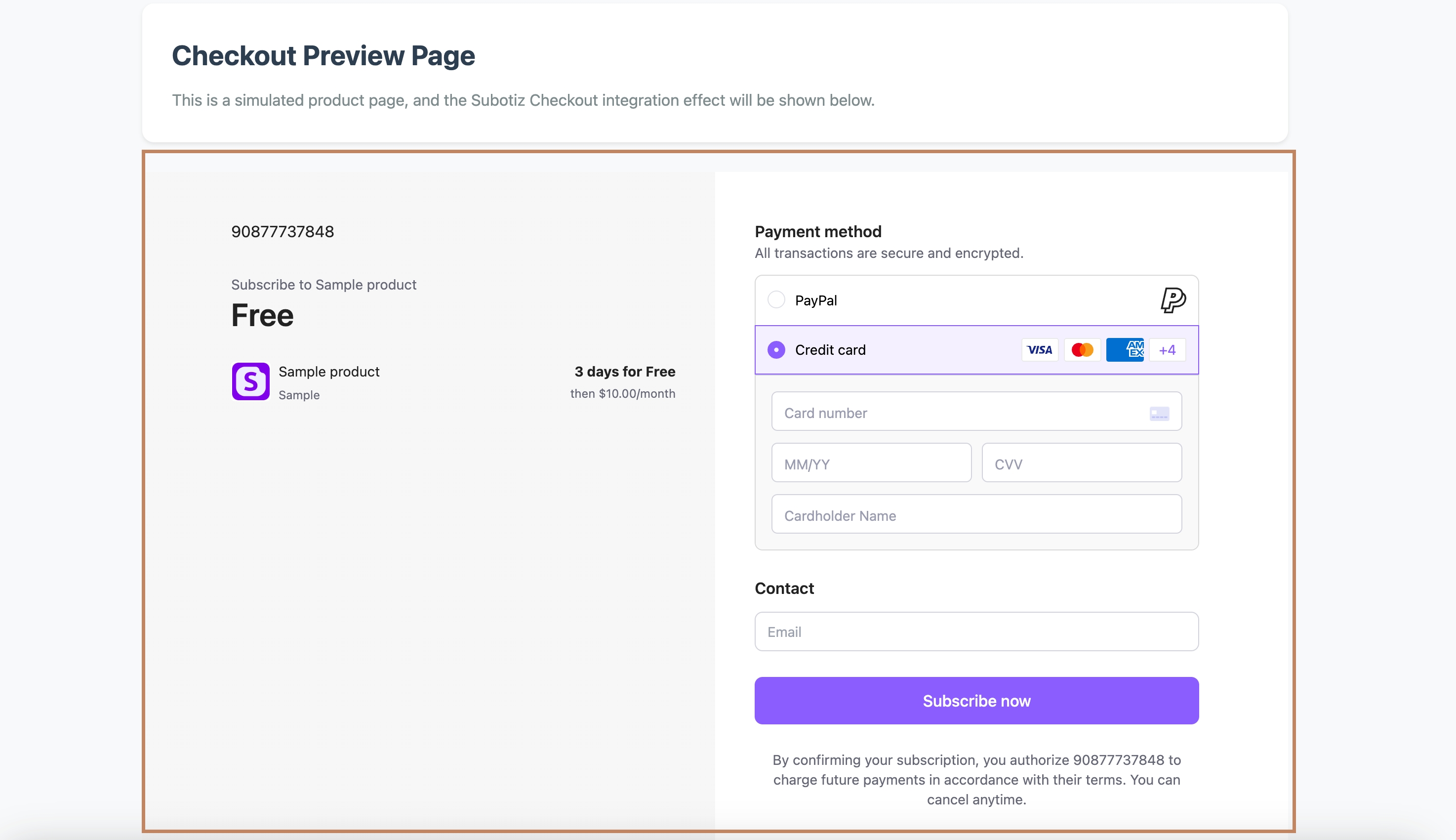

Embedding a Complete Checkout Page:

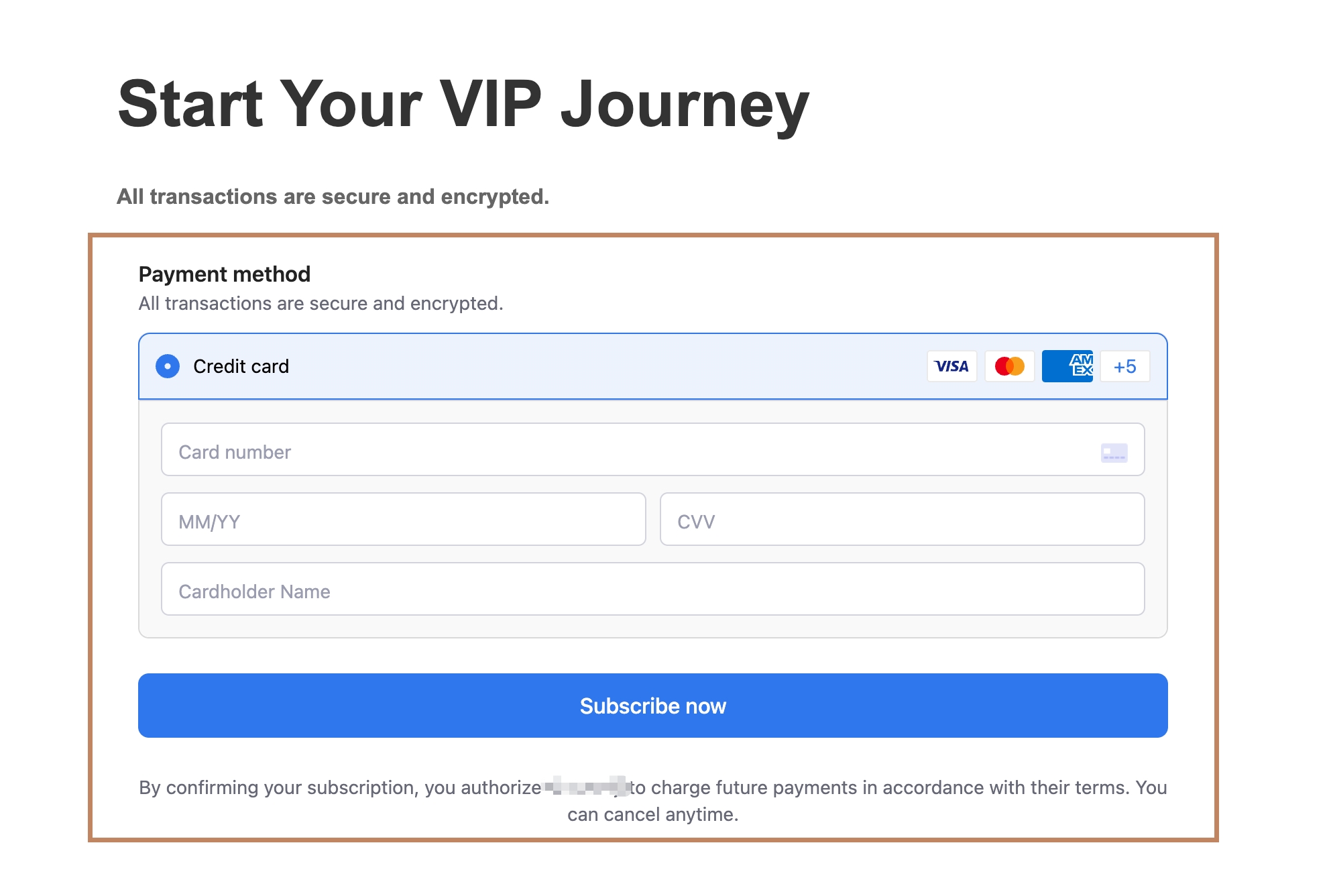

Embedding Partial Components:

Checkout Flow

When a customer is ready to complete a purchase, initiate a checkout request from your client-side application to your server. Your server should use the Subotiz API to create a Checkout Session, passing the order_id (your platform's unique order identifier) as a parameter to facilitate subsequent association with the trade order.
The Checkout Session will provide a Session ID. Your client-side application can then use the SDKs to invoke and display the Subotiz payment form to the customer.
The customer will enter their payment details into the Subotiz form and complete the transaction.
After the transaction is completed, Subotiz will notify your server via a webhook. This notification includes a payment success event containing the order_id passed during session creation, enabling you to correlate your platform's order with Subotiz's trade order.

sequenceDiagram
    participant Customer as Customer
    participant Client as Merchant Client
    participant Server as Merchant Server
    participant SubotizAPI as Subotiz API

    Customer->>Client: 1. Initiate Order
    Client->>Server: 2. Request session ID
    Server->>SubotizAPI: 3. Create Checkout Session
    SubotizAPI-->>Server: 4. Return session information
    Server-->>Client: 5. Return session id
    Client->>Client: 6. Invoke Form Using SDKs
    Client-->>Customer: 7. Display Payment Form
    Customer->>Client: 8. Enter Payment Information & Confirm
    Client->>Client: 9. Process Payment
    Client-->>Customer: 10. Return Payment Result
    SubotizAPI->>Server: Webhook Noification with Payment Result

Integration Steps

Step 1: Create Products

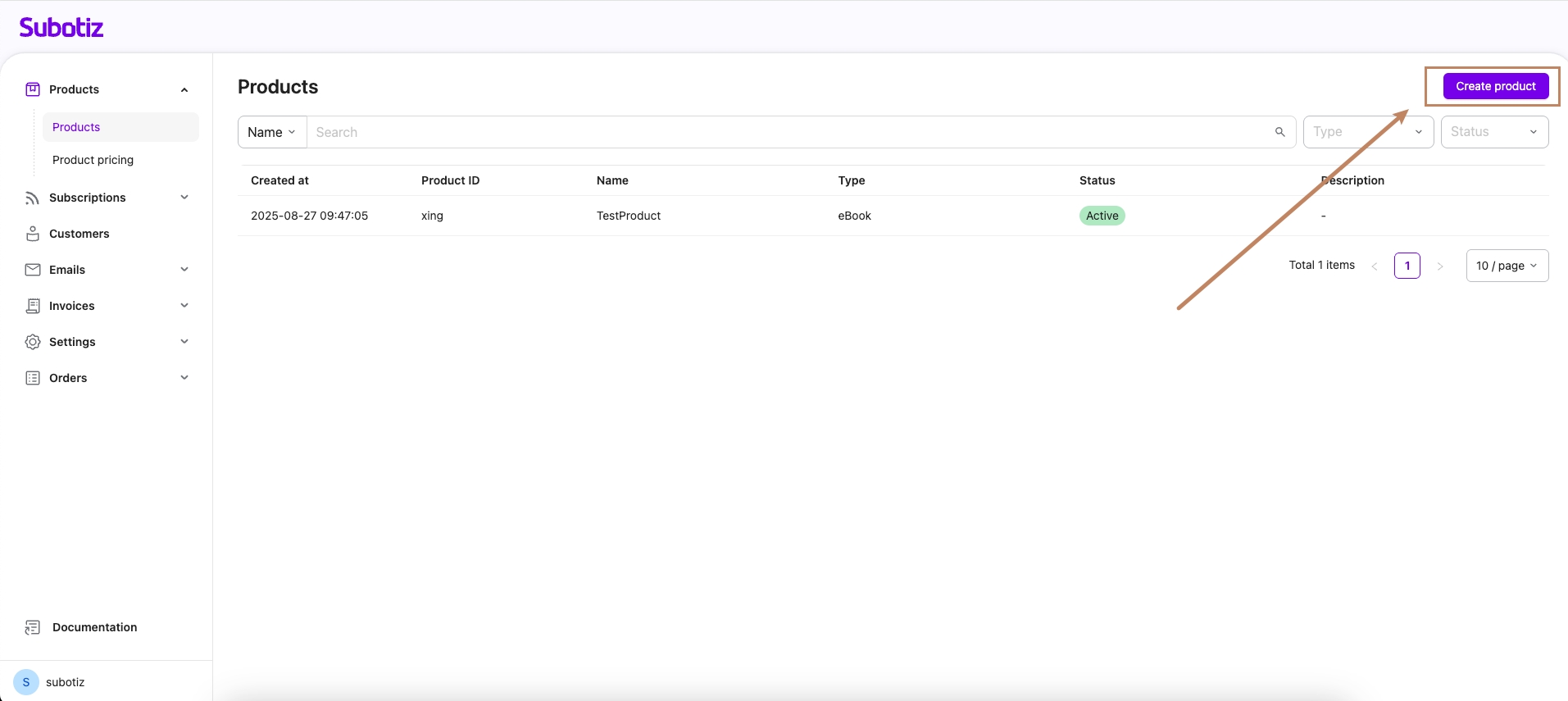

Create products and product pricing within the Subotiz merchant platform. Store the product and price information on your server. Creating a Checkout Session relies on the pricing_id of the product pricing to dynamically retrieve product information. Create a Product:

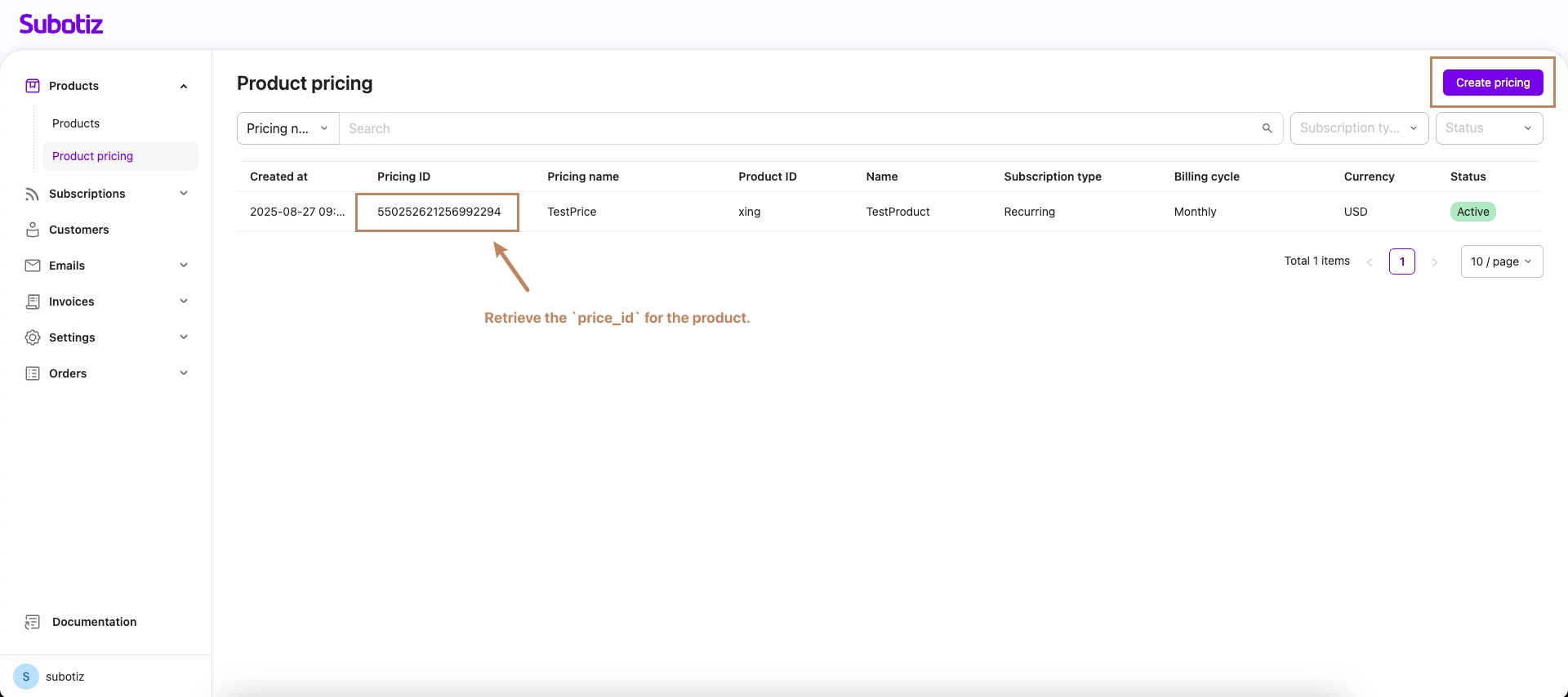

Create Product Pricing:

Step 2: Provide a Payment Success Page

Your application needs to provide a publicly accessible page to display after a successful payment. After the customer completes the payment, Subotiz will redirect them to this page.

Step 3: Provide a Webhook Endpoint

Create an endpoint to receive events for your account. When an event occurs, Subotiz will send an HTTPS POST request containing a JSON-formatted event object to this Webhook endpoint. You can use these events to keep your system's business data in sync.

Step 4: Integrate the Embedded Form

Your client-side application can use the Subotiz SDK to integrate Subotiz Checkout.

1. Load Subotiz.js

<script src="https://checkout.subotiz.com/static/subotiz/v0/subotiz.js"></script>

2. Provide a Container Node

<div id="your_domElement">
    <!-- The checkout page will be displayed here -->
</div>

3. Create Checkout Session

Use the Subotiz API to create a Checkout Session , and return the response to your frontend.

Example: Creating a Checkout Session in Embedded Mode

curl --location 'https://api.subotiz.com/api/v1/session' \
--header 'Content-Type: application/json' \
--header 'Hub-Timestamp: 1755695704350' \
--header 'Hub-Access-No: 77d52a21dc032b4' \
--header 'Request-Id: dd7fb126-be31-4144-a1af-e4bf4203eb92' \
--header 'Hub-Signature: 4830f629ff065be043c4f4b2f908ef6418d18e4ef9d6a288313ded21f1b0ec13' \
--data-raw '{
        "access_no":       "77d52a21dc032b4",
        "sub_merchant_id": "2816433",
        "order_id":        "123e4567-e89b-12-a456-426622201a",
        "payer_id": "customer_id_001",
        "customer_id":     "",
        "email":           "zhangsan@subotiz.com",
        "line_items": [                        # Product info (required for checkout mode)
            {
                "price_id": "543321366326164797",
                "quantity": "1"
            }
        ],
        "return_url":   "https://www.subotiz.com",
        "cancel_url":   "https://www.subotiz.com",
        "mode": "checkout",      # Choose 'checkout' mode when product data is present
        "integration_method": "embedded",   # Select embedded integration
        "redirect_on_completion": "if_required" # Choose redirection behavior based on business needs; this example redirects only when necessary
    }'

Key Parameters:

order_id: Your platform's internal order ID, used for subsequent business data correlation.
integration_method: Set to embedded to use the embedded form integration method.
return_url: The URL the customer is redirected to after a successful payment.
mode: Choose checkout mode when product data is present.

4. Initialize the Checkout Page

// After importing via the script tag, Subotiz is automatically attached to the window object
const {
    Subotiz
} = window;

// Create an SDK instance
const subotiz = Subotiz();

// Initialize checkout
const checkout = await subotiz.initEmbeddedCheckout({
    fetchSessionUrl: async() => {
        // Fetch the sessionUrl from your server
        const response = await fetch('/api/session');
        const data = await response.json();
        return data.sessionUrl;
    },
    environment: 'SANDBOX',// 'SANDBOX' | 'PRODUCTION'
    // The callback function when the payment completed only triggers when `redirect_on_completion`  is set to `if_required` during Checkout session creation
    onComplete: () => {
        console.log('Payment completed!');
    }
});

// Mount to the page
checkout.mount('#checkout-container');
